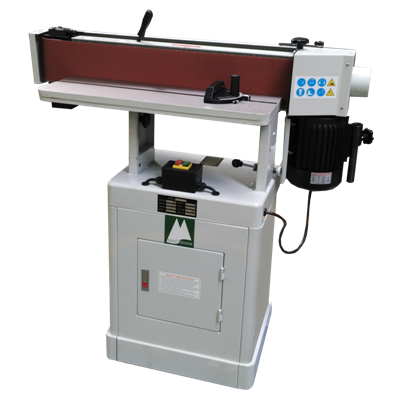

木工機博銓BOY-80S環帶砂磨機/Belt sander
售價 : NT$40,000 未稅不含運

洽詢信箱 : john3687@gmail.com 電話: 0928-351912

  • 該機器能加工出平滑的木材邊緣, 以低成本的投資就能進行木材邊緣及表面的任何直線或曲線砂磨
  • 砂帶可上下震盪砂磨
  • This BIG BOY-80S is designed to produce smooth finishing on edges of wood parts.It performs straight, curved edge and surface sanding for a low investment. End table is optional.
  • abrasive belt oscillation stroke
1.

砂帶鬆緊度可輕鬆調節, 確保運轉順暢
EASY BELT TENSION ADJUSTMENT TO MAINTAIN SANDING BELT
2. 工作檯高度可調整以配合砂帶寬度
TABLE ADJUSTS VERTICALLY TO UTILIZE THE FULL WIDTH
3. 砂帶可以水平固定
PLATEN CAN BE FIXED HORIZONTALLY, FOR SURFACE SAND
4. 側工作台能方便的砂磨彎曲部分，並可調節高度
END TABLE PROVIDES CONVENIENT SANDING FOR CURVED PARTS

參考影片 : https://www.youtube.com/watch?v=yL8h4NjhfgQ
Worktable length/工作檯長
   685mm(27'')
Worktable width/工作檯寬
   248mm(10'')
Belt length/砂帶長
   2260mm (89'')
Belt width/砂帶寬
   152mm (6'')
Motor/馬達
   1 1/2 HP
Line speed/線速度
   60 Hz 3900 F.P.M
Net weight/淨重
   112 kgs
Gross weight/毛重
   120 kgs
